80 PUMP

About this tool

Built where it's used — tested in the field.

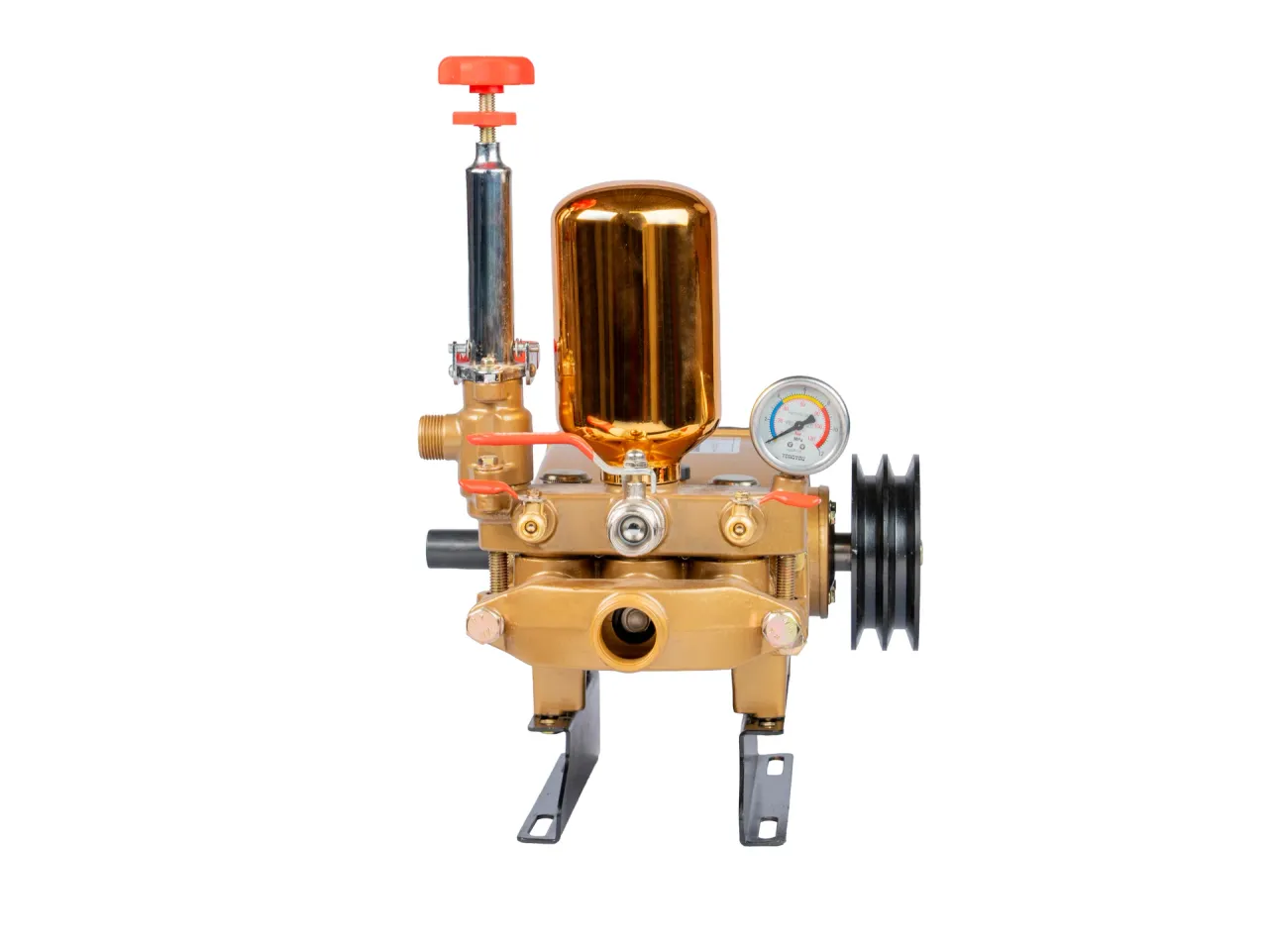

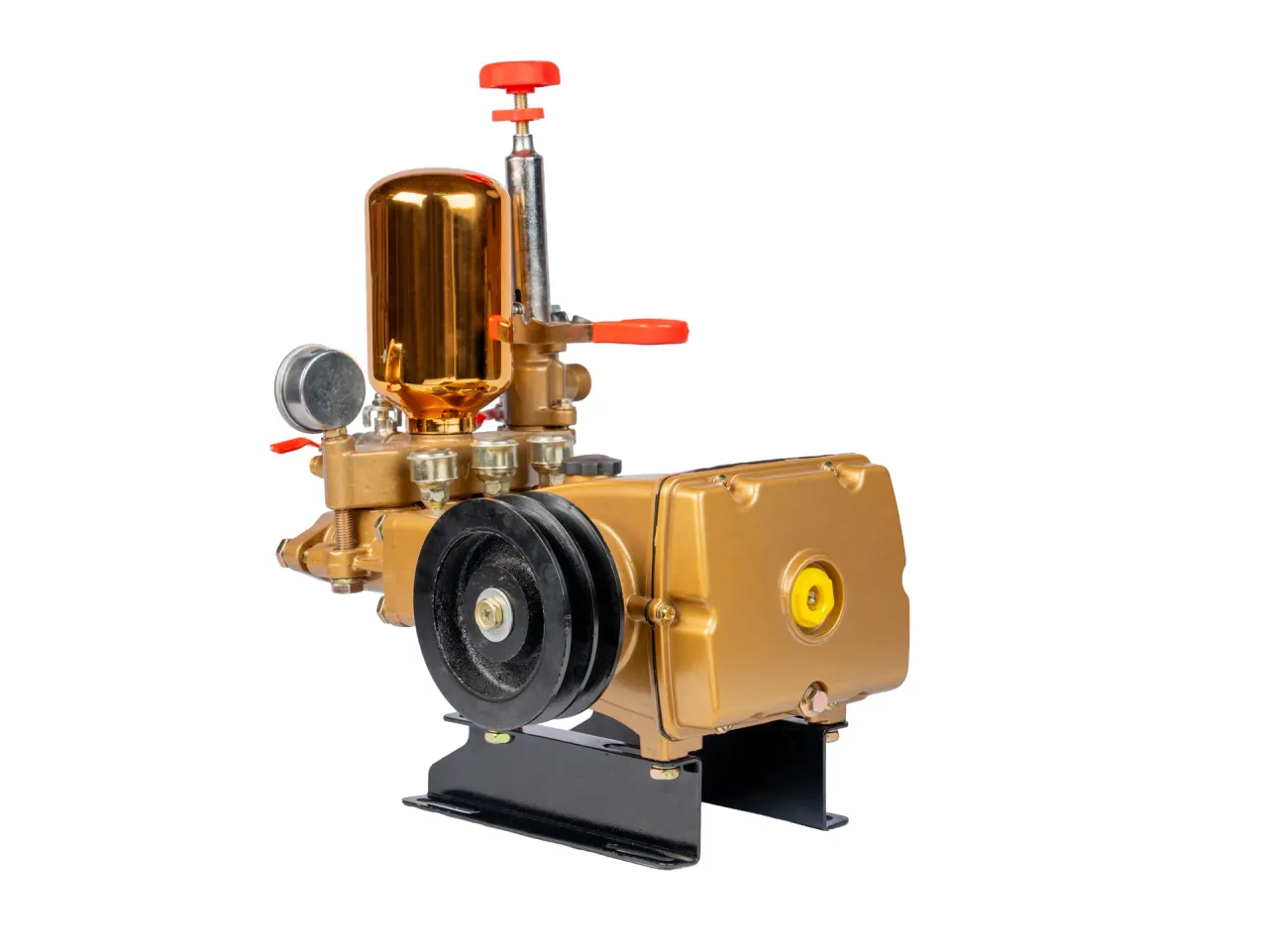

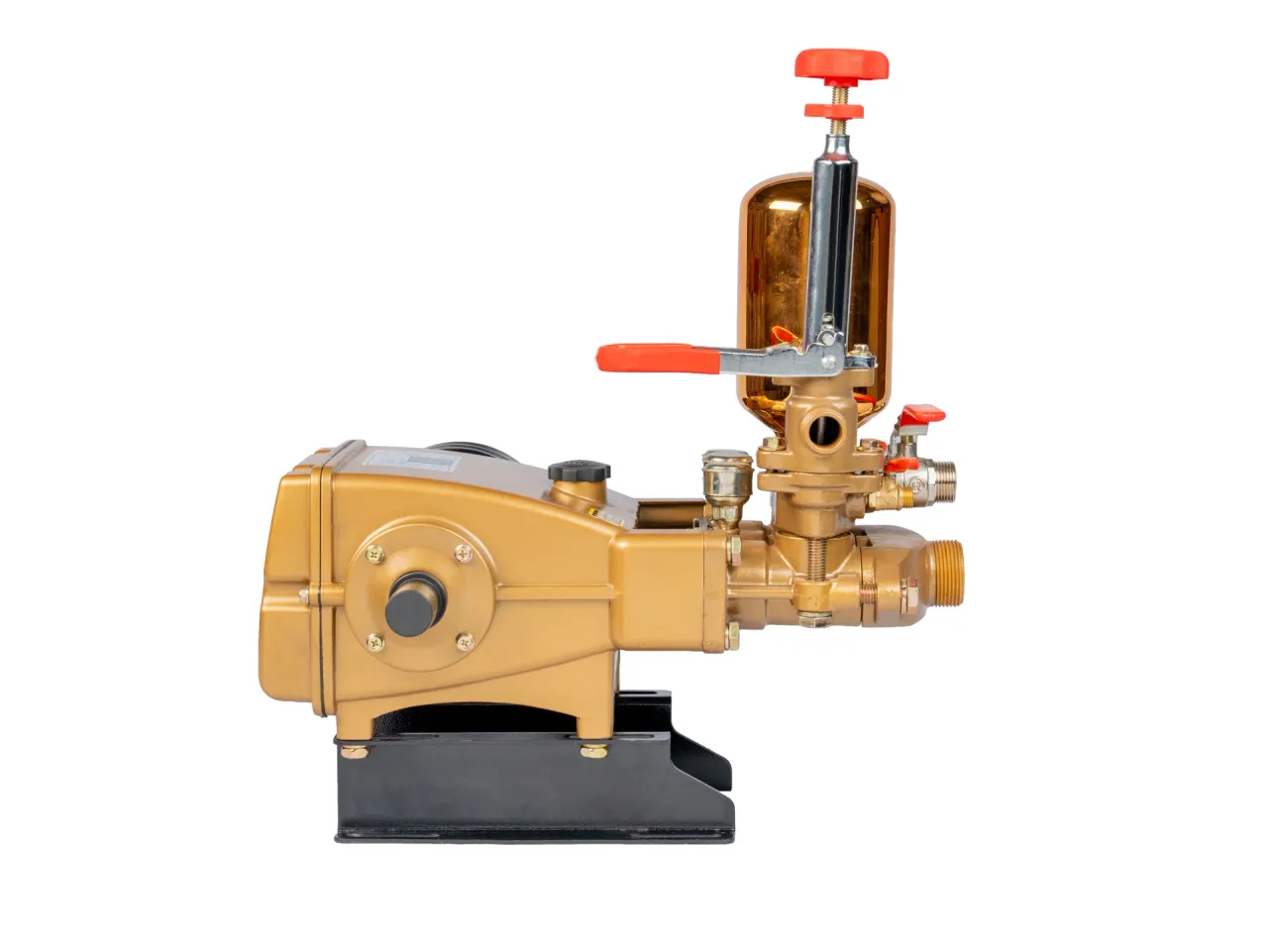

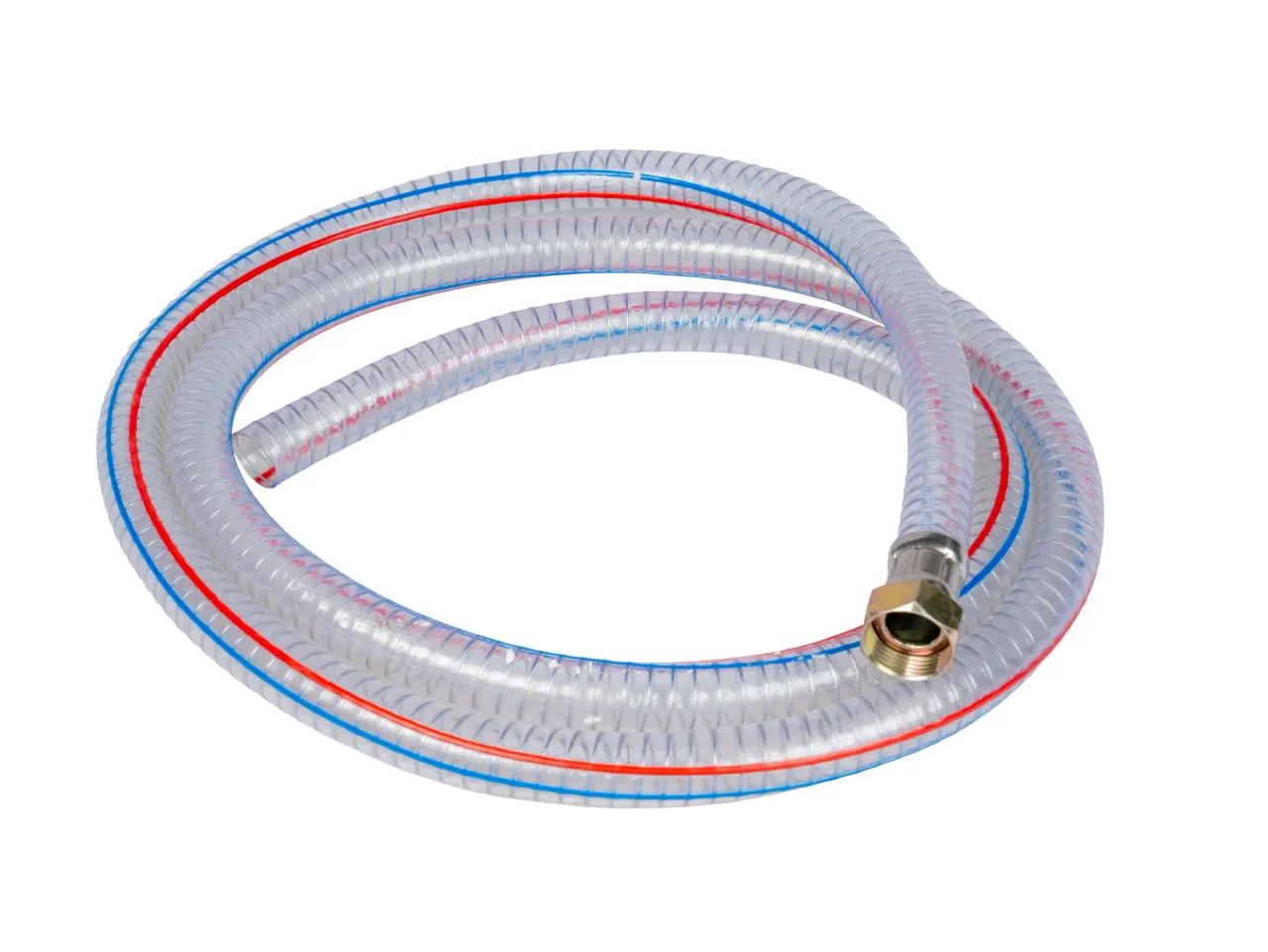

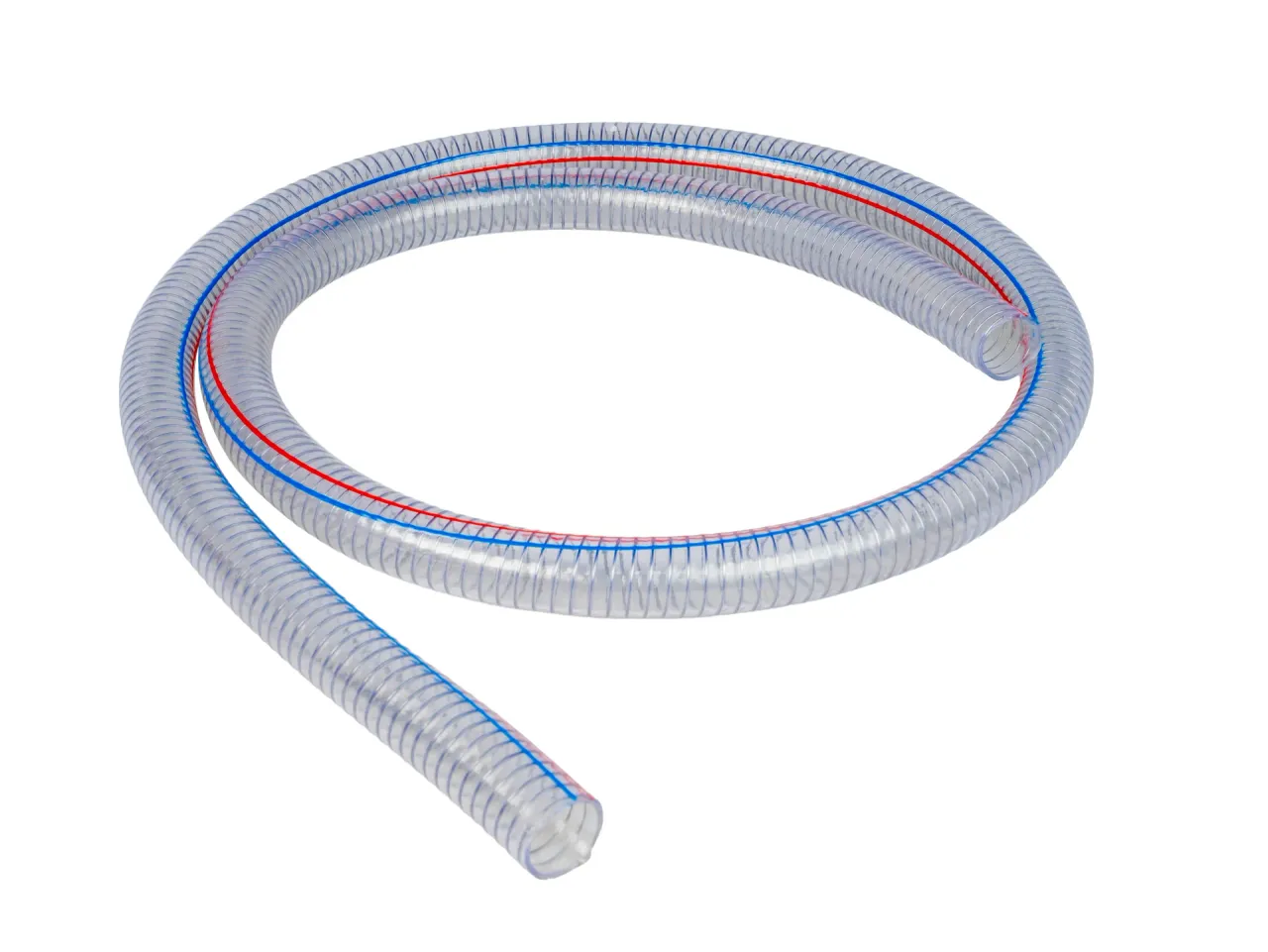

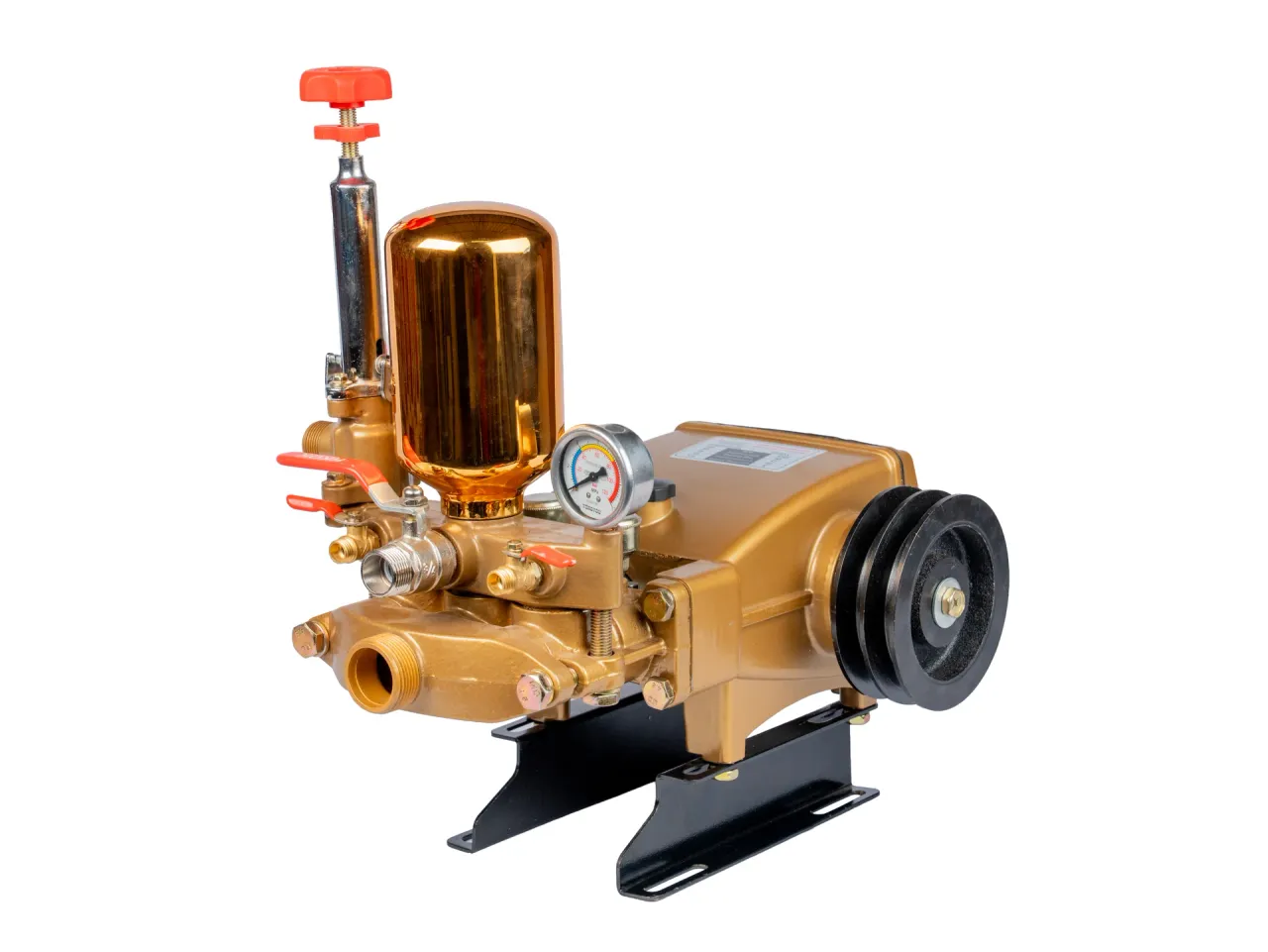

The HTP Pump is engineered for professional agricultural spraying applications where high water output, strong pressure, and reliable performance are essential. Featuring a robust 3-plunger system (3 × 34 × 32 mm), the pump delivers a high suction capacity of 65-75 liters per minute, ensuring efficient spraying across large fields, orchards, and plantations. Designed to operate with 5.5 HP to 9 HP engines, the pump generates a spraying pressure of 10-40 kg/cm², making it suitable for both crop spraying and high-reach applications. The powerful pressure output allows the spray to reach up to 25-30 feet vertically and supports long-distance hose connections, helping farmers cover larger areas with less effort. The pump comes equipped with two 1/4-inch brass outlet valves and one 3/4-inch stainless steel outlet cock, allowing multiple spraying options and improved operational flexibility. Its 5-inch cast iron pulley ensures efficient power transmission and long service life under heavy-duty working conditions. For enhanced durability, the unit includes a 2.5-meter SS transparent suction hose and a 2.2-meter red overflow hose, providing reliable liquid flow and easy monitoring during operation. Built for demanding agricultural environments, this HTP pump offers the durability, performance, and efficiency required for professional spraying operations.

Spec sheet

Plunger no*dia*stroke (mm)

3*34*32

Spraying Pressure (kg/cm2)

10-40

Suction(L/min)

65-75

Engine Power (HP)

5.5 - 9

Net Weight (kg)

14.6

Specifications subject to revision. Confirm with your dealer for current models.
