HTP Sprayer · HTTP-1102
GARUDA-30A1

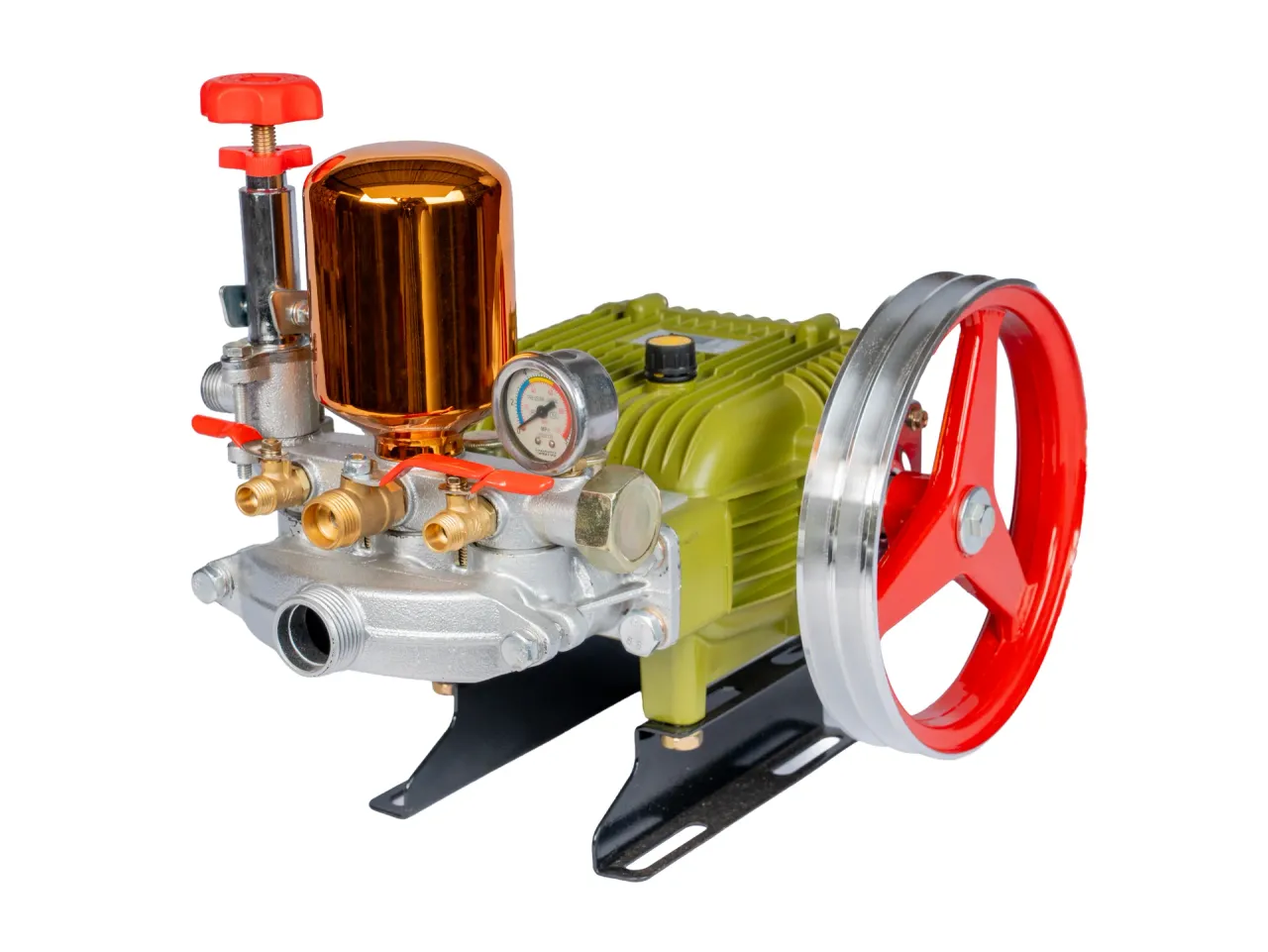

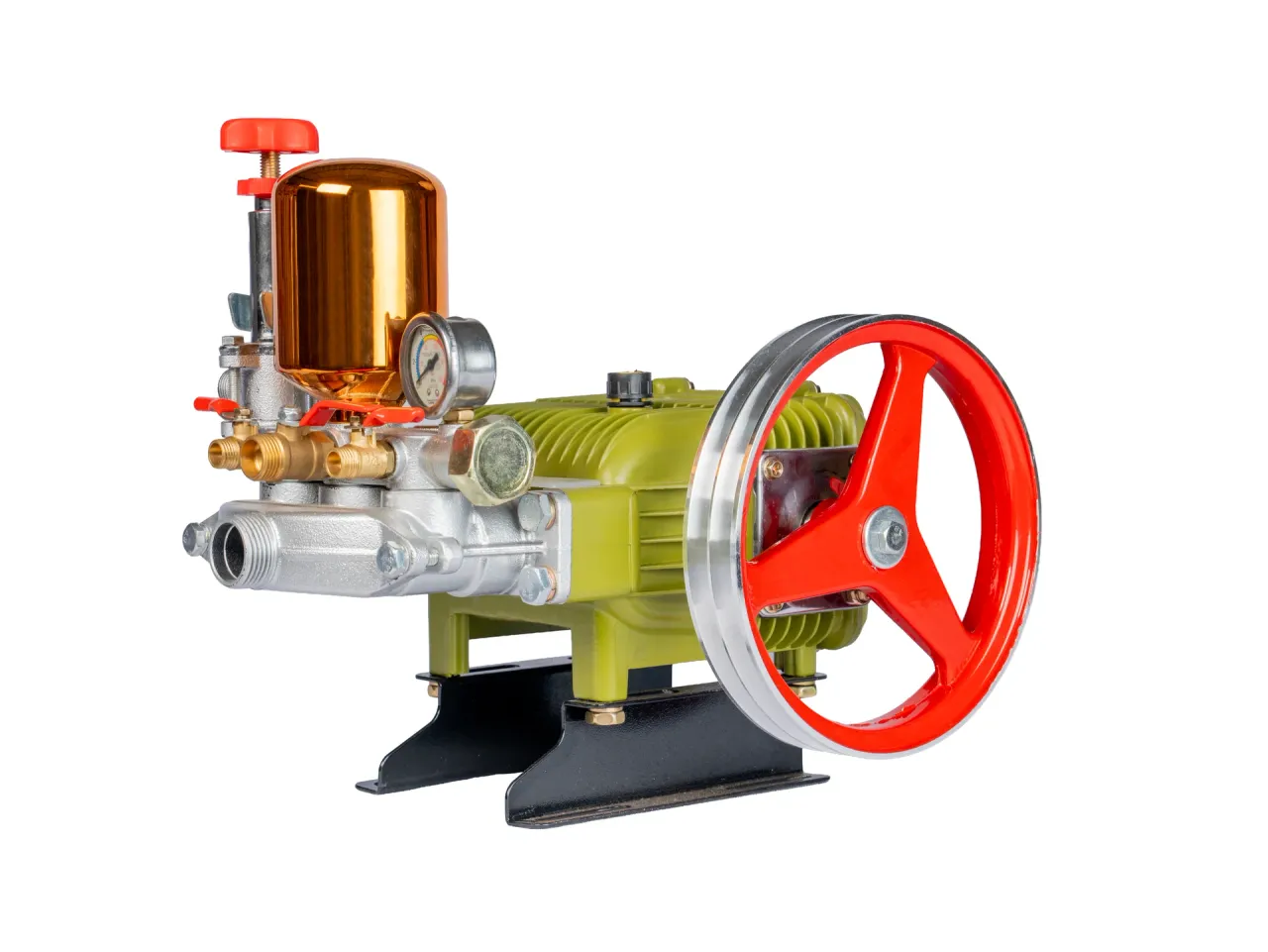

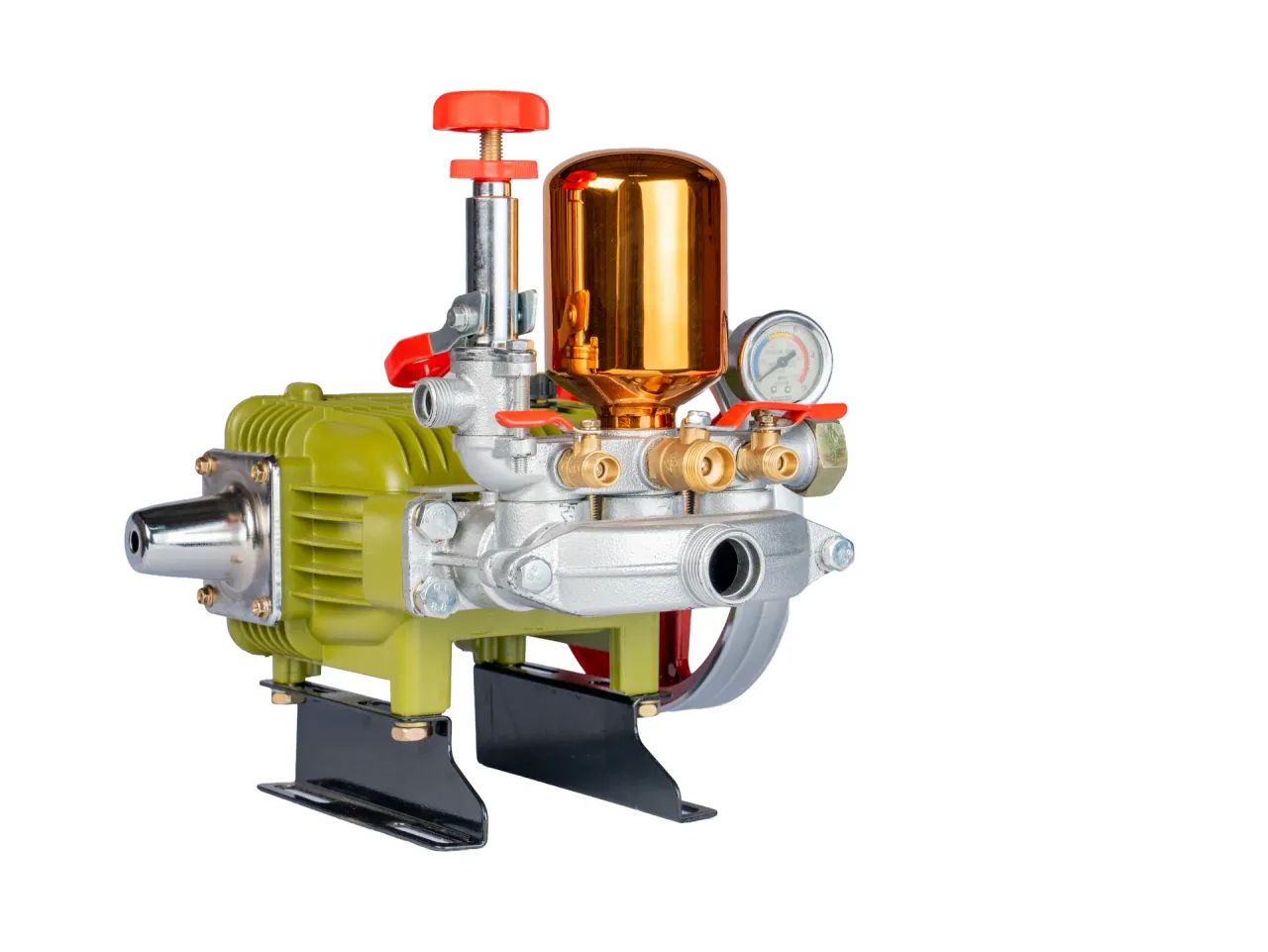

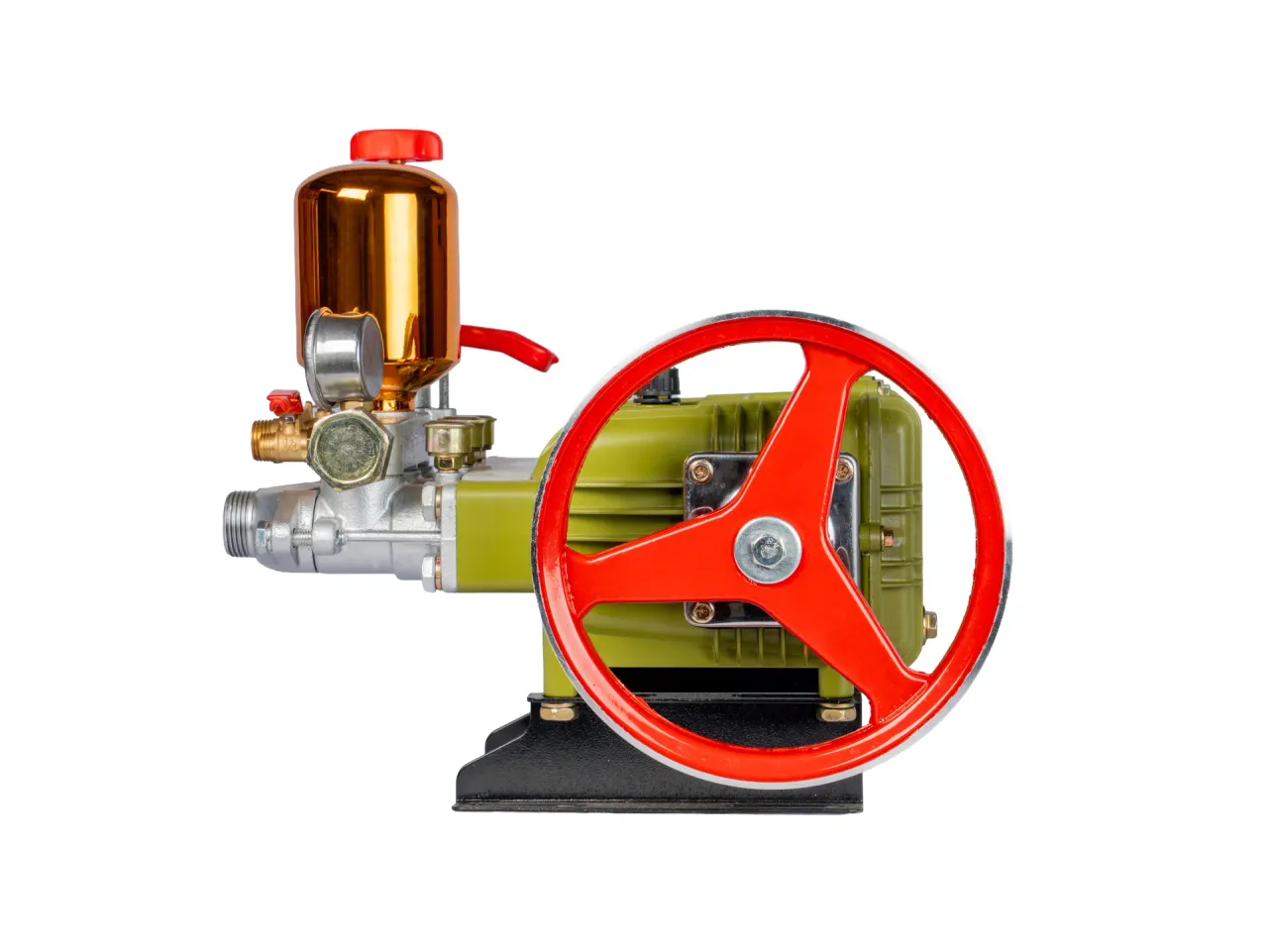

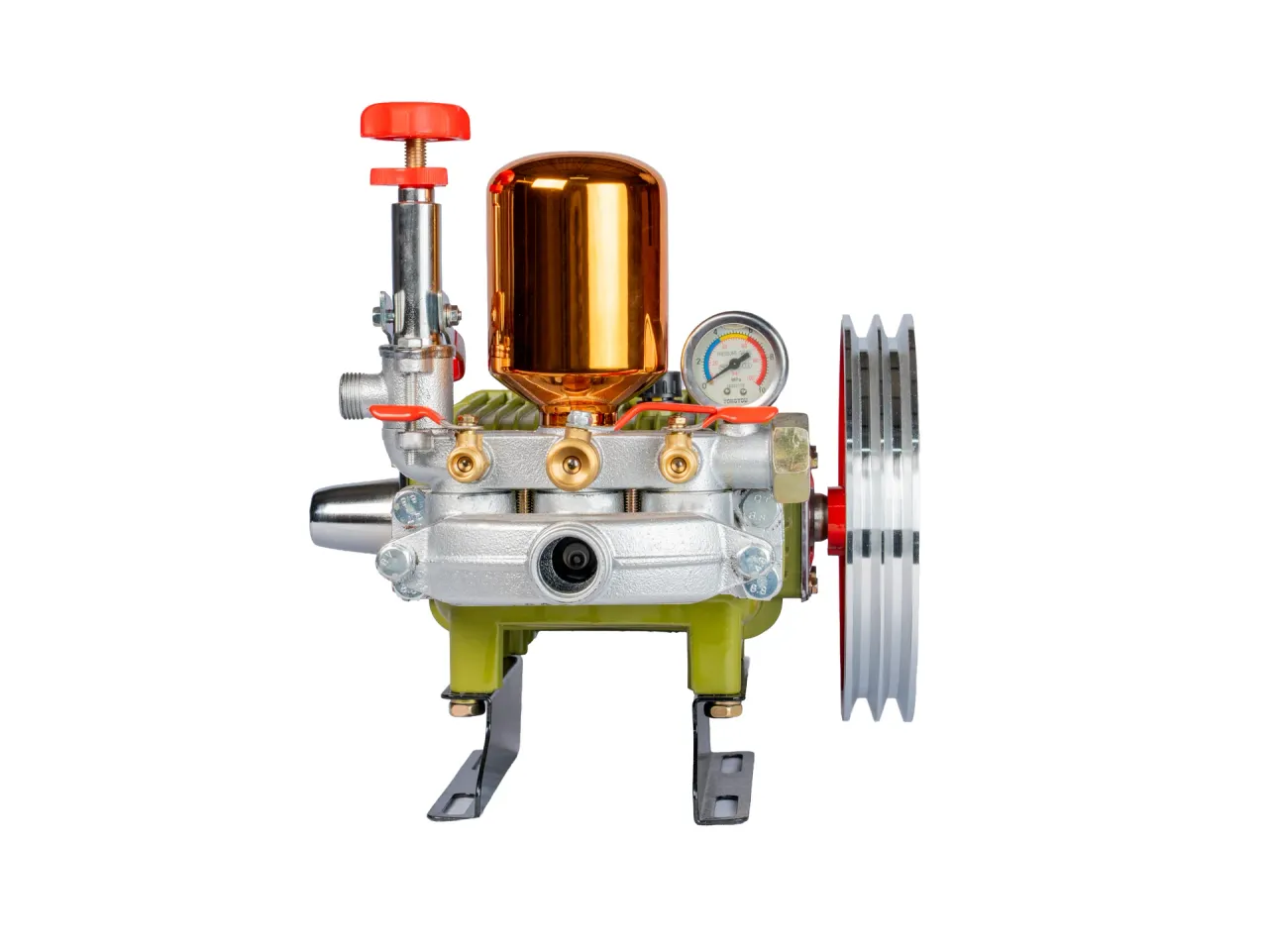

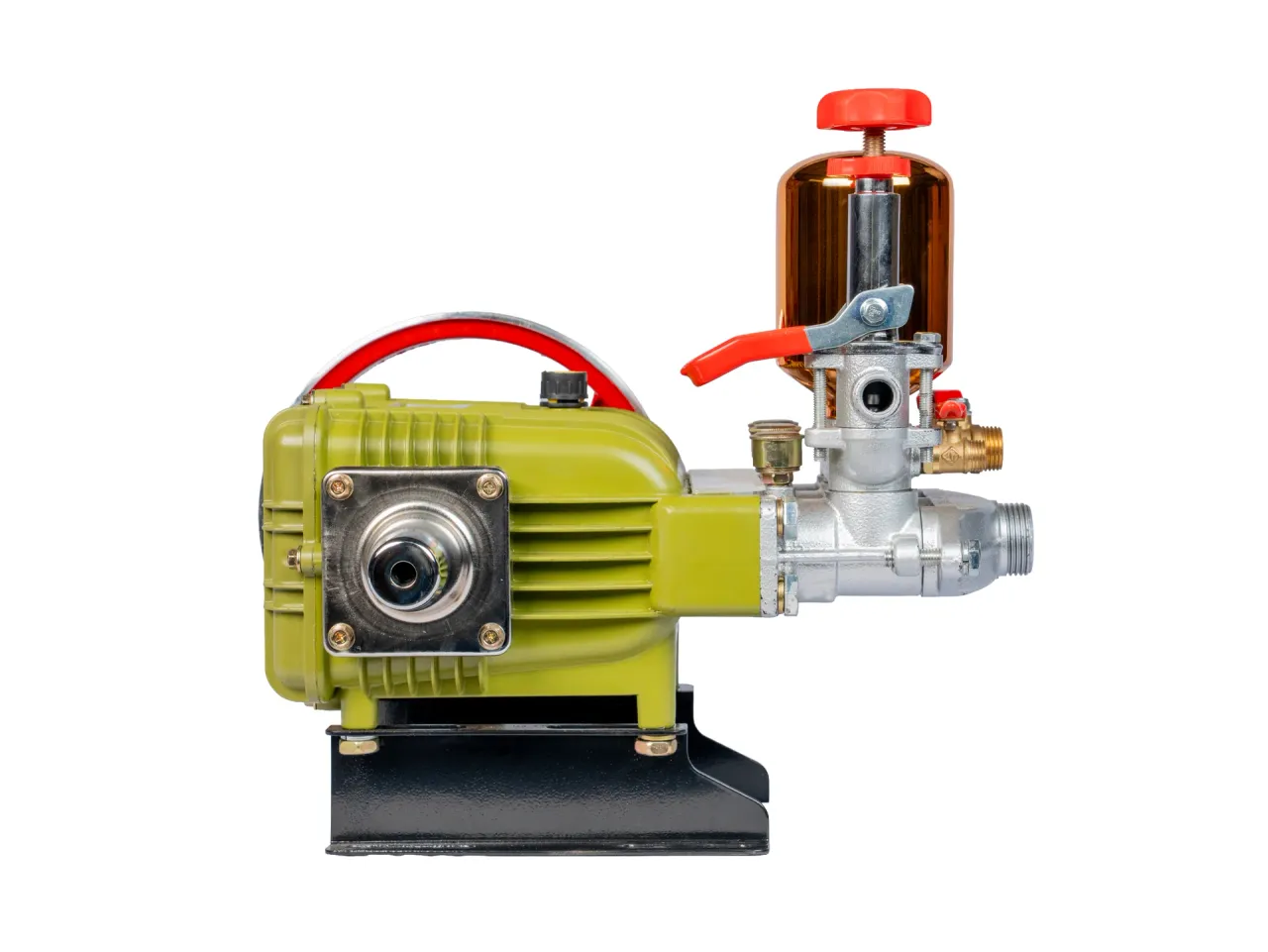

The 30A1 HTP Pump is a heavy-duty high-pressure spraying pump designed for large farms, orchards, and plantation applications. Powered by a 4.5-6.5 HP engine, it delivers a high suction capacity of 30-45 LPM and spraying pressure of 10-40 kg/cm² for efficient and long-range spraying. Built with an SS-coated cast iron body and a triple-piston system, it ensures durability, smooth performance, and long service life. Equipped with two ¼-inch outlets and one ½-inch outlet, the pump supports multiple spraying operations, making it ideal for professional agricultural use.
Price
₹10,500+ shipping & taxes- Pressure
- 10-40 kg/cm²
- Outlets
- Two ¼" + One ½"
- Max Delivery Hose
- 300 m
- Engine Compatibility
- 4.5-6.5 HP
- Warranty6 months
- ShippingPan-India · 3–10 days
- Support48-hr replacement
About this tool
Built where it's used — tested in the field.
The 30A1 HTP Pump is a heavy-duty agricultural spraying pump designed for large farms, orchards, plantations, and commercial spraying applications. Powered by a 4.5-6.5 HP engine, this pump delivers high-pressure performance and exceptional liquid output, making it ideal for demanding field operations. Equipped with a triple-piston system, the pump provides a suction capacity of 30-45 LPM and a spraying pressure of 10-40 kg/cm², ensuring efficient chemical application and deep crop coverage. It supports up to 300 meters of delivery hose and can achieve a spraying height of 25-30 feet, making it suitable for tall fruit trees and large cultivation areas. The pump features three outlet valves, including two ¼-inch outlets and one ½-inch outlet, allowing multiple operators to spray simultaneously or use high-volume spraying equipment. Its SS-coated cast iron body offers excellent durability and resistance to agricultural chemicals, while the large 1200 ml oil reservoir ensures smooth operation during extended working hours. Supplied with reinforced SS-winded transparent hoses, stainless steel strainer, extra V-packings, washers, and a tensioner spanner, the 30A1 HTP Pump is built for long-lasting performance and easy maintenance.
Spec sheet
- Body
- SS-coated Cast Iron
- Pump
- Triple-piston
- Suction
- 30-45 LPM
- Pressure
- 10-40 kg/cm²
- Outlets
- Two ¼" + One ½"
- Max Delivery Hose
- 300 m
- Engine Compatibility
- 4.5-6.5 HP
- Oil Reservoir
- 1200 ml
Specifications subject to revision. Confirm with your dealer for current models.
