GARUDA-22A1

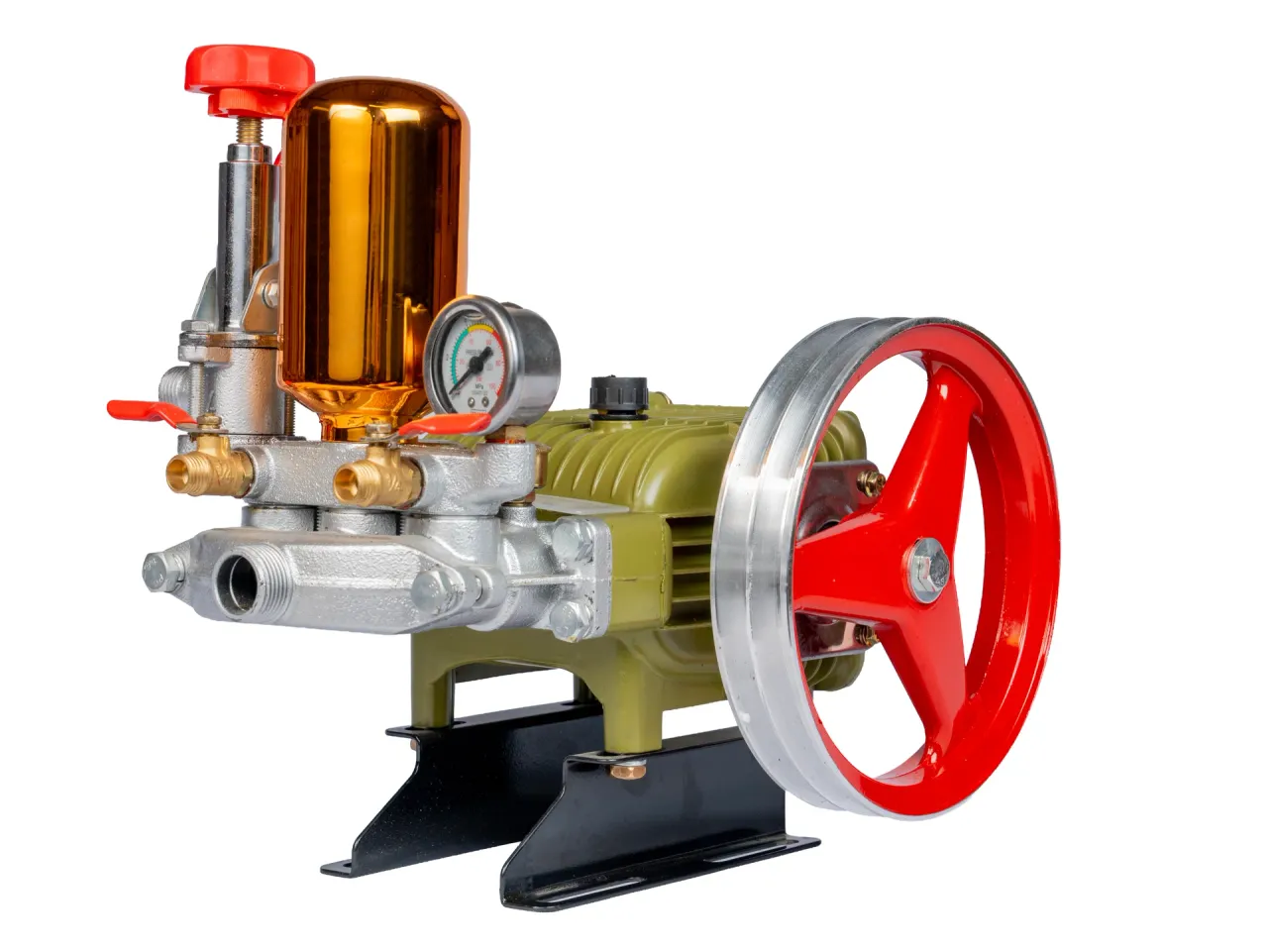

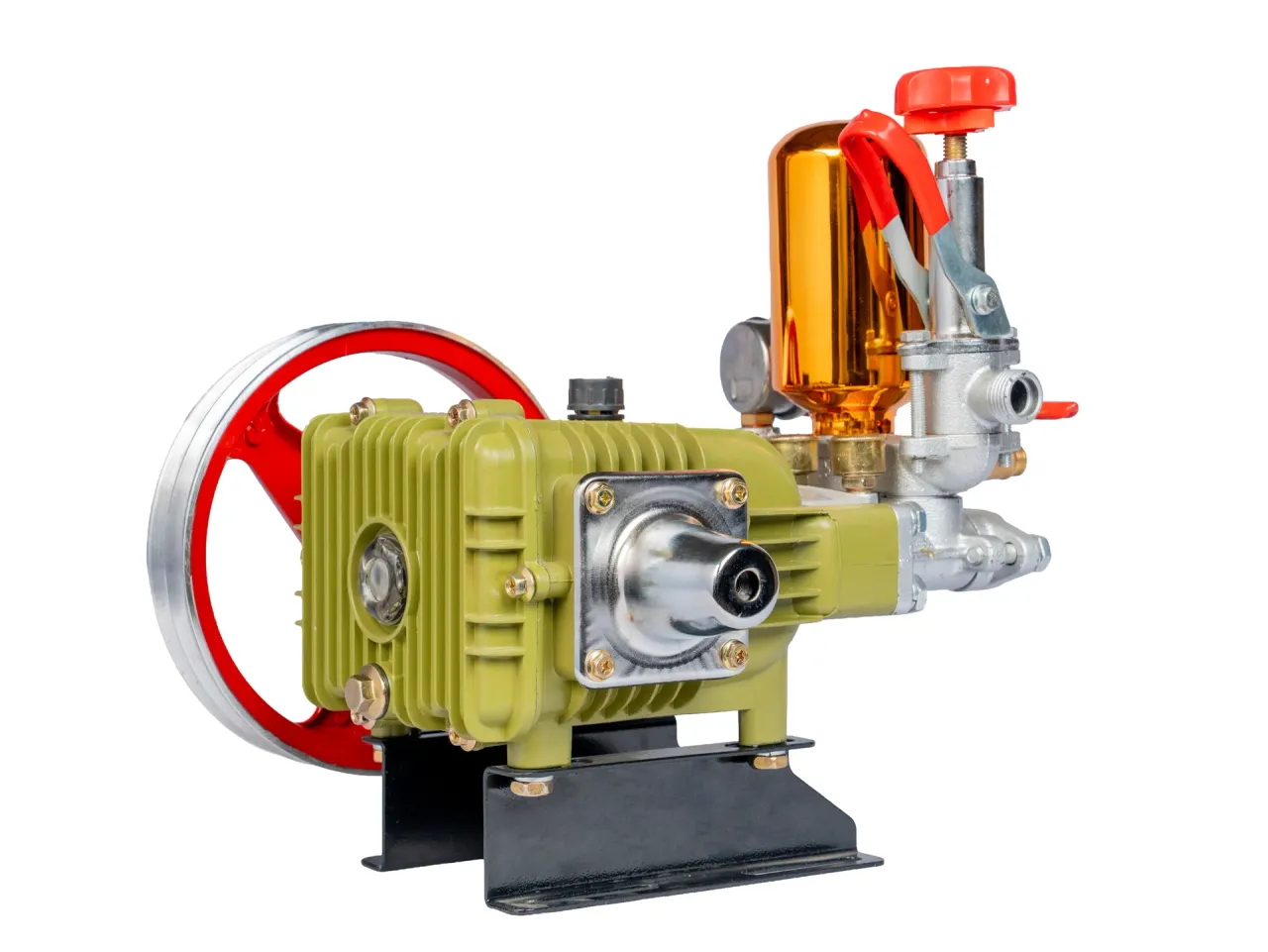

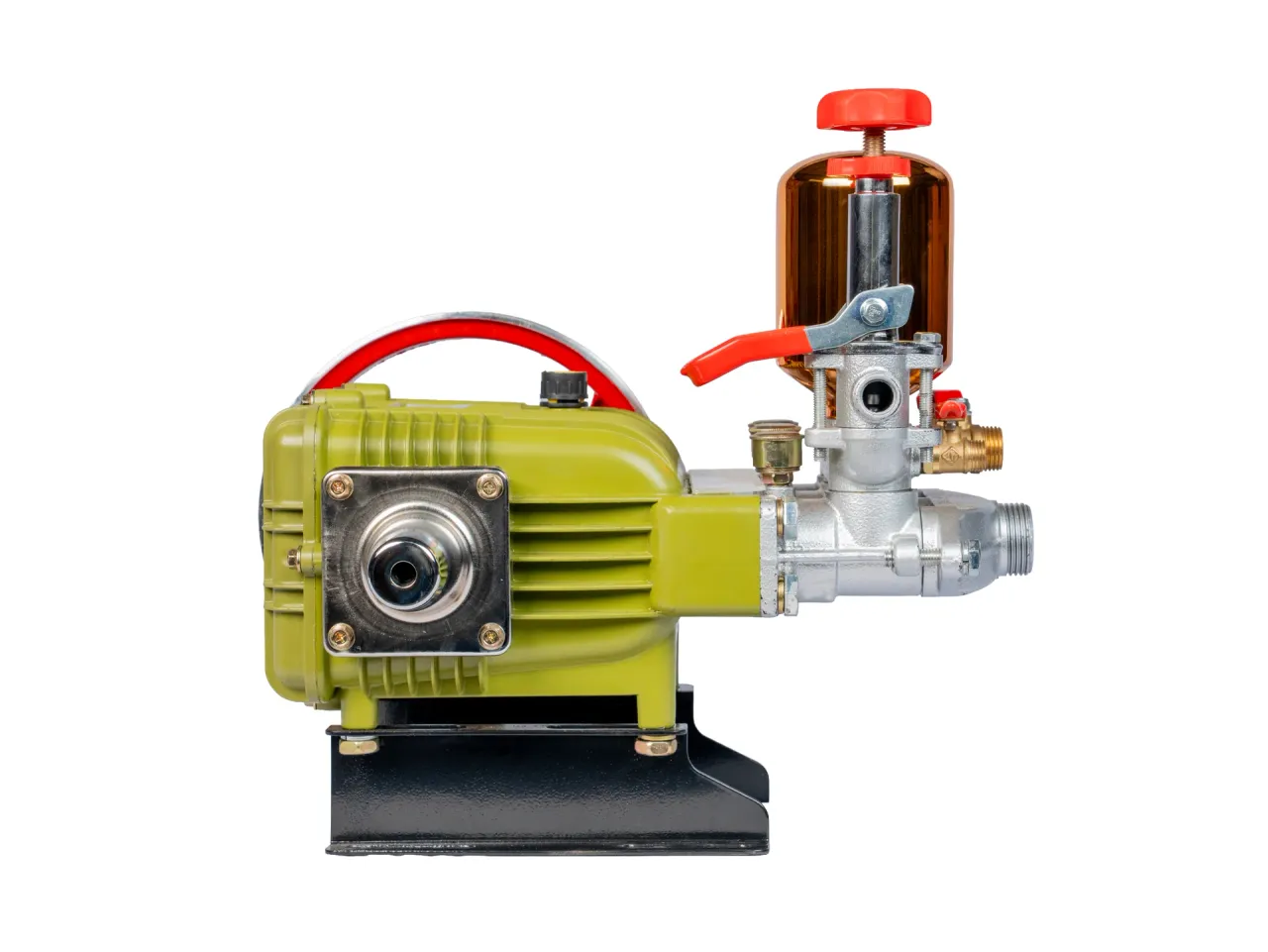

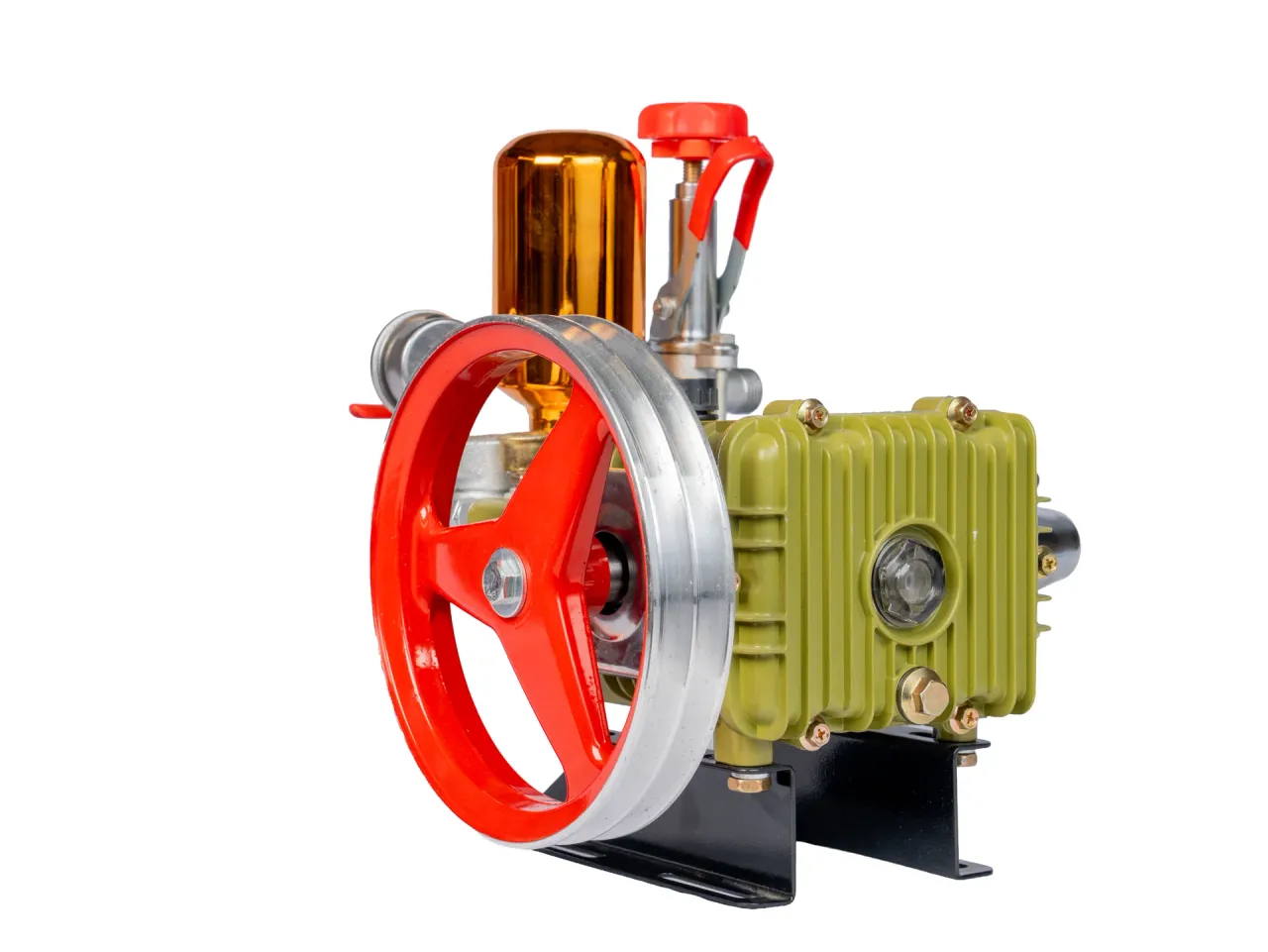

This heavy-duty cast iron HTP Pump is designed for high-pressure agricultural spraying applications. Featuring a durable 3-plunger system, 10-40 kg/cm² spraying pressure, and compatibility with 4.5-5.5 HP engines, it delivers reliable and efficient performance for farms, orchards, and plantations. The pump is equipped with two ¼-inch outlets, allowing dual spray connections for improved productivity, along with a transparent suction hose, stainless steel suction strainer, and overflow hose for smooth and continuous operation.

Price

₹8,000+ shipping & taxes

Pressure: 10-30 kg/cm²
Outlets: Two ¼"
Pulley: 7 inch
Max Delivery Hose: 200 m

Request a quote Find a dealer near you

Warranty6 months
ShippingPan-India · 3–10 days
Support48-hr replacement

About this tool

Built where it's used — tested in the field.

The 22A1 HTP Pump is a heavy-duty agricultural spraying pump designed for high-pressure and long-distance spraying applications. Built with an SS-coated cast iron body and a powerful triple-piston system, it delivers reliable performance for farms, orchards, plantations, and commercial agriculture. The pump is capable of supporting up to 200 meters of delivery hose and provides an effective spraying height of 25-30 feet, making it ideal for tall trees, dense crops, and large agricultural areas. Equipped with two ¼-inch outlet valves, it allows two operators to spray simultaneously, increasing productivity and reducing spraying time. With a suction capacity of 25-35 LPM and a pressure range of 10-30 kg/cm², the pump ensures strong and consistent liquid flow. The 7-inch pulley makes it compatible with 3 HP petrol engines or electric motors, providing flexibility for different farming requirements. The package includes reinforced SS-winded transparent suction and overflow hoses, stainless steel strainer, washers, tensioner spanner, and extra V-packings for easy maintenance and long service life.

Spec sheet
